For detailed information on this product, please refer to the manufacturer's Full Specification below
| Model | Output Voltage | Output Current | Efficiency | Input Range |
|---|---|---|---|---|
| 01DC-1R2-1A(L) | 1.2 | 1000 | 74 | 4.75-36 |
| 01DC-1R5-1A(L) | 1.5 | 1000 | 78 | 4.75-36 |
| 01DC-1R8-1A(L) | 1.8 | 1000 | 82 | 4.75-36 |
| 01DC-2R5-1A(L) | 2.5 | 1000 | 87 | 4.75-36 |
| 01DC-3R3-1A(L) | 3.3 | 1000 | 90 | 4.75-36 |
| 01DC-05-1A(L) | 5.0 | 1000 | 92 | 6.5-36 |
| 01DC-6R5-1A(L) ) | 6.5 | 1000 | 93 | 9.0-36 |
| 01DC-09-1A(L) | 9.0 | 1000 | 95 | 12-36 |
| 01DC-12-1A(L) | 12 | 1000 | 95 | 15-36 |
| 01DC-15-1A(L) | 15 | 1000 | 95 | 18-36 |

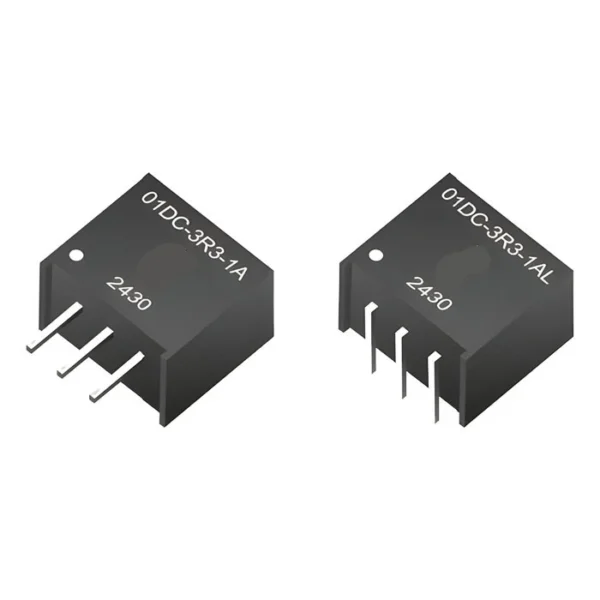

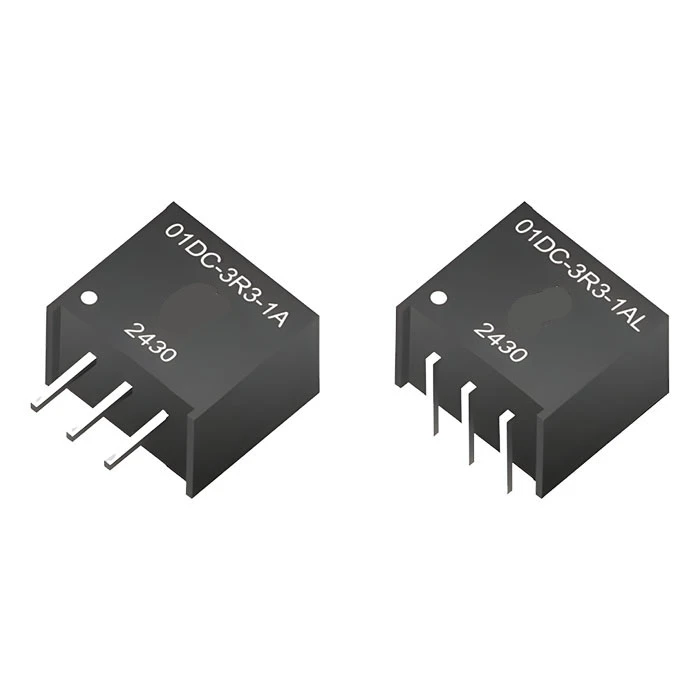

Features 3PIN SIP Package Pin-out compatible with LM78XX Linear Efficiency up to 95%, non-isolated, no need for heatsinks UL94V-0 package material Operating temperature from -40℃ to +85℃ No-load input current as low as 0.3mA Short circuit protection UL / cUL / IEC / EN 62368-1 approved, CB-Report
