For detailed information on this product, please refer to the manufacturer's Full Specification below
| Model | Input Voltage | Output Voltage | Output Current | Efficiency |
|---|---|---|---|---|
| 01DC-1R2-500(L) | 4.75-36 | 1.2 | 500 | 74 |
| 01DC-1R5-500(L) | 4.75-36 | 1.5 | 500 | 78 |
| 01DC-1R8-500(L) | 4.75-36 | 1.8 | 500 | 82 |
| 01DC-2R5-500(L) | 4.75-36 | 2.5 | 500 | 65 |
| 01DC-3R3-500(L) | 4.75-36 | 3.3 | 500 | 87 |
| 01DC-05-500(L) | 6.5-36 | 5.0 | 500 | 90 |
| 01DC-6R5-500(L) | 9.0-36 | 6.5 | 500 | 92 |
| 01DC-09-500(L) | 12-36 | 9.0 | 500 | 93 |
| 01DC-12-500(L) | 15-36 | 12 | 500 | 95 |
| 01DC-15-500(L) | 18-36 | 15 | 500 | 95 |

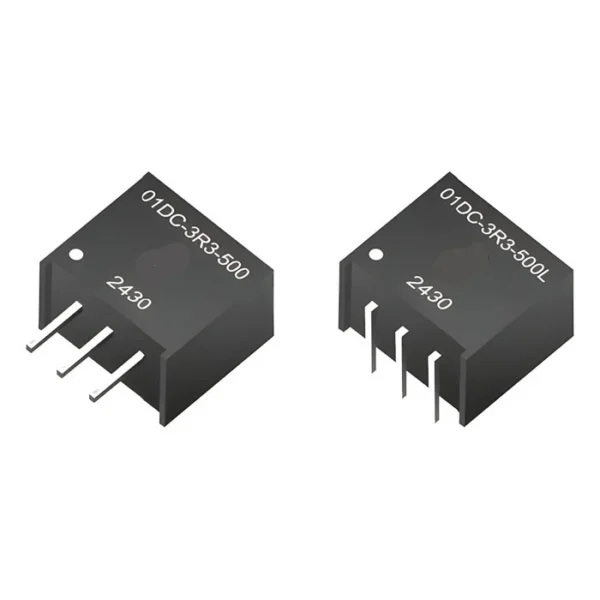

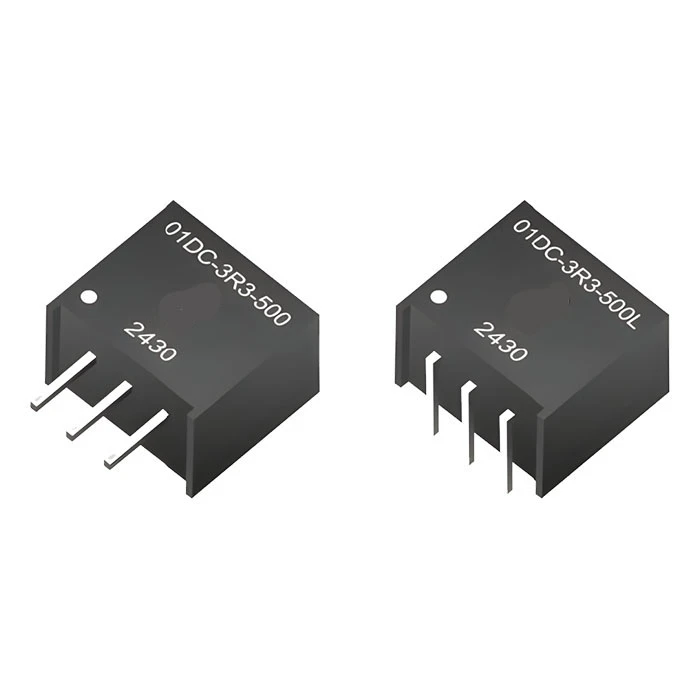

Features 3PIN SIP Package Pin-out compatible with LM78XX Linear Efficiency up to 95%, non-isolated, no need for heatsinks UL94V-0 package material Operating temperature from -40℃ to +85℃ No-load input current as low as 0.3mA Short circuit protection UL / cUL / IEC / EN 62368-1 approved, CB-Report
