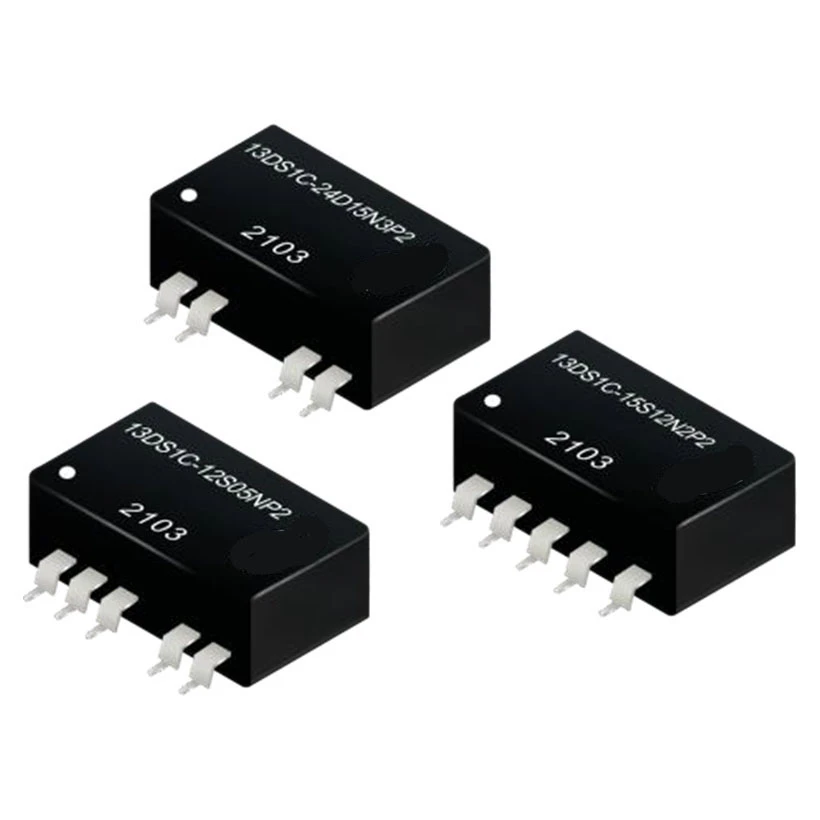

High Efficient 2W SMD 1.5KVDC & 3KVDC Isolation
For detailed information on this product, please refer to the manufacturer's Full Specification below
High Efficient 2W SMD 1.5KVDC & 3KVDC Isolation
| Model | Output Voltage | Output Current | Efficiency |
|---|---|---|---|
| 13DS1C-05S03NYP2(H3) | 3.3 | 600 | 78 |
| 13DS1C-05S05NYP2(H3) | 5 | 400 | 84 |
| 13DS1C-05S09NYP2(H3) | 9 | 223 | 85 |
| 13DS1C-05S12NYP2(H3) | 12 | 167 | 85 |
| 13DS1C-05S15NYP2(H3) | 15 | 133 | 86 |
| 13DS1C-05S24NYP2(H3) | 24 | 84 | 87 |
| 13DS1C-05D03NYP2(H3) | ±3.3 | ±300 | 80 |
| 13DS1C-05D05NYP2(H3) | ±5 | ±200 | 82 |
| 13DS1C-05D09NYP2(H3) | ±9 | ±112 | 85 |
| 13DS1C-05D12NYP2(H3) | ±12 | ±84 | 85 |
| 13DS1C-05D15NYP2(H3) | ±15 | ±67 | 87 |
| 13DS1C-05D24NYP2(H3) | ±24 | ±42 | 88 |
| 13DS1C-XXS03NYP2(H3) | 3.3 | 600 | 80 |
| 13DS1C-XXS05NYP2(H3) | 5 | 400 | 85 |
| 13DS1C-XXS09NYP2(H3) | 9 | 223 | 87 |
| 13DS1C-XXS12NYP2(H3) | 12 | 167 | 87 |
| 13DS1C-XXS15NYP2(H3) | 15 | 133 | 88 |
| 13DS1C-XXS24NYP2(H3) | 24 | 84 | 89 |
| 13DS1C-XXD03NYP2(H3) | ±3.3 | ±300 | 80 |
| 13DS1C-XXD05NYP2(H3) | ±5 | ±200 | 82 |
| 13DS1C-XXD09NYP2(H3) | ±9 | ±112 | 85 |
| 13DS1C-XXD12NYP2(H3) | ±12 | ±84 | 87 |
| 13DS1C-XXD15NYP2(H3) | ±15 | ±67 | 88 |
| 13DS1C-XXD24NYP2(H3) | ±24 | ±42 | 89 |
