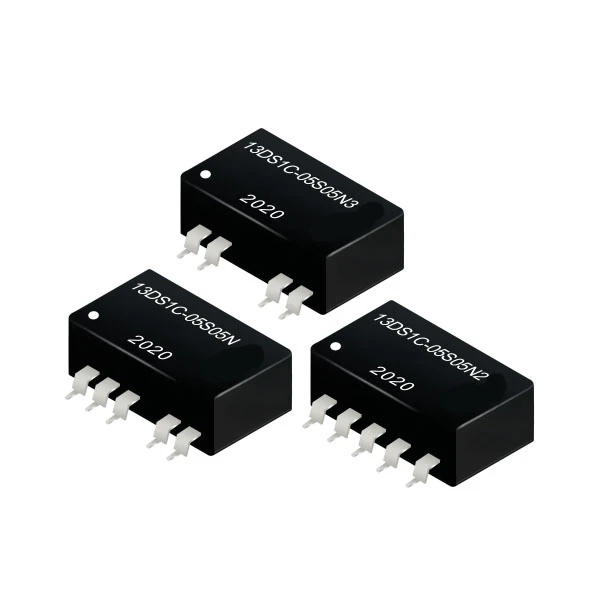

High Efficient 1W SMD 1.5KVDC & 3KVDC Isolation
For detailed information on this product, please refer to the manufacturer's Full Specification below
High Efficient 1W SMD 1.5KVDC & 3KVDC Isolation
| Model | Output Voltage | Output Current | Efficiency |
|---|---|---|---|
| 13DS1C-YYS03N*P(H3) | 3.3 | 303 | 76 |
| 13DS1C-YYS05N*P(H3) | 5 | 200 | 82 |
| 13DS1C-YYS09N*P(H3) | 9 | 112 | 83 |
| 13DS1C-YYS12N*P(H3) | 12 | 84 | 84 |
| 13DS1C-YYS15N*P(H3) | 15 | 67 | 84 |
| 13DS1C-YYS24N*P(H3) | 24 | 42 | 85 |
| 13DS1C-YYD03N*P(H3) | ±3.3 | ±151 | 76 |
| 13DS1C-YYD05N*P(H3) | ±5 | ±100 | 82 |
| 13DS1C-YYD09N*P(H3) | ±9 | ±56 | 83 |
| 13DS1C-YYD12N*P(H3) | ±12 | ±42 | 84 |
| 13DS1C-YYD15N*P(H3) | ±15 | ±34 | 84 |
| 13DS1C-YYD24N*P(H3) | ±24 | ±21 | 85 |
| 13DS1C-XXS03N*P(H3) | 3.3 | 303 | 78 |
| 13DS1C-XXS05N*P(H3) | 5 | 200 | 82 |
| 13DS1C-XXS09N*P(H3) | 9 | 112 | 85 |
| 13DS1C-XXS12N*P(H3) | 12 | 84 | 85 |
| 13DS1C-XXS15N*P(H3) | 15 | 67 | 87 |
| 13DS1C-XXS24N*P(H3) | 24 | 42 | 85 |
| 13DS1C-XXD03N*P(H3) | ±3.3 | ±151 | 78 |
| 13DS1C-XXD05N*P(H3) | ±5 | ±100 | 82 |
| 13DS1C-XXD09N*P(H3) | ±9 | ±56 | 85 |
| 13DS1C-XXD12N*P(H3) | ±12 | ±42 | 85 |
| 13DS1C-XXD15N*P(H3) | ±15 | ±34 | 87 |
| 13DS1C-XXD24N*P(H3) | ±24 | ±21 | 85 |
Features 3PIN SIP Package Pin-out compatible with LM78XX Linear Efficiency up to 95%, non-isolated, no need for heatsinks UL94V-0 package material Operating temperature from -40℃ to +85℃ No-load input current as low as 0.3mA Short circuit protection UL / cUL / IEC / EN 62368-1 approved, CB-Report
