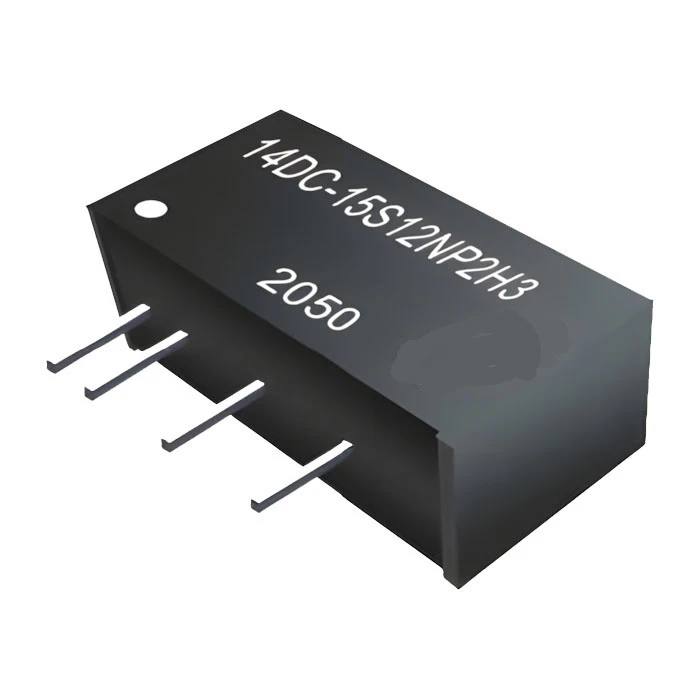

High Efficient 2W 1.5KVDC & 3KVDC Isolation
For detailed information on this product, please refer to the manufacturer's Full Specification below
High Efficient 2W 1.5KVDC & 3KVDC Isolation
| Model | Output Voltage | Output Current | Efficiency |
|---|---|---|---|
| 14DC-05S03NP2(H3) | 3.3 | 600 | 78 |
| 14DC-05S05NP2(H3) | 5 | 400 | 85 |
| 14DC-05S09NP2(H3) | 9 | 223 | 87 |
| 14DC-05S12NP2(H3) | 12 | 167 | 87 |
| 14DC-05S15NP2(H3) | 15 | 133 | 88 |
| 14DC-05S24NP2(H3) | 24 | 84 | 89 |
| 14DC-05D03NP2(H3) | ±3.3 | ±300 | 78 |
| 14DC-05D05NP2(H3) | ±5 | ±200 | 82 |
| 14DC-05D09NP2(H3) | ±9 | ±112 | 85 |
| 14DC-05D12NP2(H3) | ±12 | ±84 | 87 |
| 14DC-05D15NP2(H3) | ±15 | ±67 | 88 |
| 14DC-05D24NP2(H3) | ±24 | ±42 | 89 |
| 14DC-XXS03NP2(H3) | 3.3 | 600 | 80 |
| 14DC-XXS05NP2(H3) | 5 | 400 | 85 |
| 14DC-XXS09NP2(H3) | 9 | 223 | 87 |
| 14DC-XXS12NP2(H3) | 12 | 167 | 87 |
| 14DC-XXS15NP2(H3) | 15 | 133 | 88 |
| 14DC-XXS24NP2(H3) | 24 | 84 | 89 |
| 14DC-XXD03NP2(H3) | ±3.3 | ±300 | 80 |
| 14DC-XXD05NP2(H3) | ±5 | ±200 | 82 |
| 14DC-XXD09NP2(H3) | ±9 | ±112 | 85 |
| 14DC-XXD12NP2(H3) | ±12 | ±84 | 87 |
| 14DC-XXD15NP2(H3) | ±15 | ±67 | 88 |
| 14DC-XXD24NP2(H3) | ±24 | ±42 | 89 |
Features 3PIN SIP Package Pin-out compatible with LM78XX Linear Efficiency up to 95%, non-isolated, no need for heatsinks UL94V-0 package material Operating temperature from -40℃ to +85℃ No-load input current as low as 0.3mA Short circuit protection UL / cUL / IEC / EN 62368-1 approved, CB-Report
