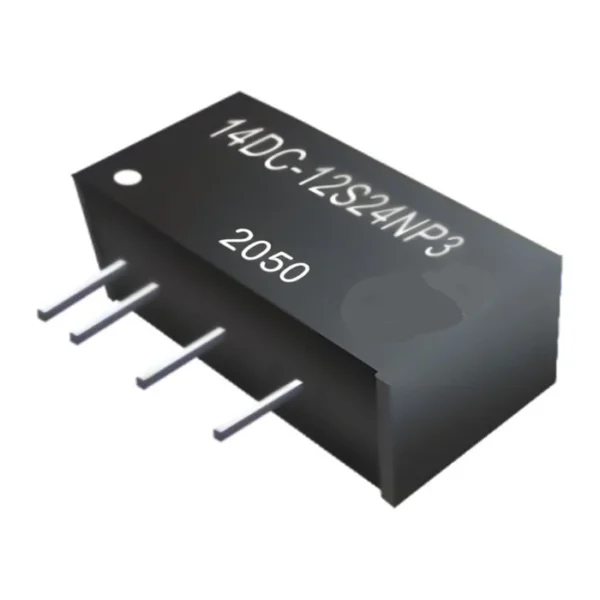

High Efficient 3W 1.5KVDC & 3KVDC Isolation
For detailed information on this product, please refer to the manufacturer's Full Specification below
High Efficient 3W 1.5KVDC & 3KVDC Isolation
| Model | Output Voltage | Output Current | Efficiency |
|---|---|---|---|
| 14DC-12S05NP3(H3) | 5 | 600 | 85 |
| 14DC-12S12NP3(H3) | 12 | 250 | 87 |
| 14DC-12S15NP3(H3) | 15 | 200 | 88 |
| 14DC-12S24NP3(H3) | 24 | 125 | 88 |
| 14DC-12D05NP3(H3) | ±5 | ±300 | 86 |
| 14DC-12D12NP3(H3) | ±12 | ±125 | 86 |
| 14DC-12D15NP3(H3) | ±15 | ±100 | 88 |
| 14DC-12D24NP3(H3) | ±24 | ±63 | 88 |
| 14DC-15S05NP3(H3) | 5 | 600 | 85 |
| 14DC-15S12NP3(H3) | 12 | 250 | 87 |
| 14DC-15S15NP3(H3) | 15 | 200 | 88 |
| 14DC-15S24NP3(H3) | 24 | 125 | 88 |
| 14DC-15D05NP3(H3) | ±5 | ±300 | 86 |
| 14DC-15D12NP3(H3) | ±12 | ±125 | 86 |
| 14DC-15D15NP3(H3) | ±15 | ±100 | 88 |
| 14DC-15D24NP3(H3) | ±24 | ±63 | 88 |
| 14DC-24S05NP3(H3) | 5 | 600 | 85 |
| 14DC-24S12NP3(H3) | 12 | 250 | 87 |
| 14DC-24S15NP3(H3) x | 15 | 200 | 88 |
| 14DC-24S24NP3(H3) | 24 | 125 | 88 |
| 14DC-24D05NP3(H3) | ±5 | ±300 | 86 |
| 14DC-24D12NP3(H3) | ±12 | ±125 | 86 |
| 14DC-24D15NP3(H3) | ±15 | ±100 | 88 |
| 14DC-24D24NP3(H3) | ±24 | ±63 | 88 |
Features 3PIN SIP Package Pin-out compatible with LM78XX Linear Efficiency up to 95%, non-isolated, no need for heatsinks UL94V-0 package material Operating temperature from -40℃ to +85℃ No-load input current as low as 0.3mA Short circuit protection UL / cUL / IEC / EN 62368-1 approved, CB-Report
