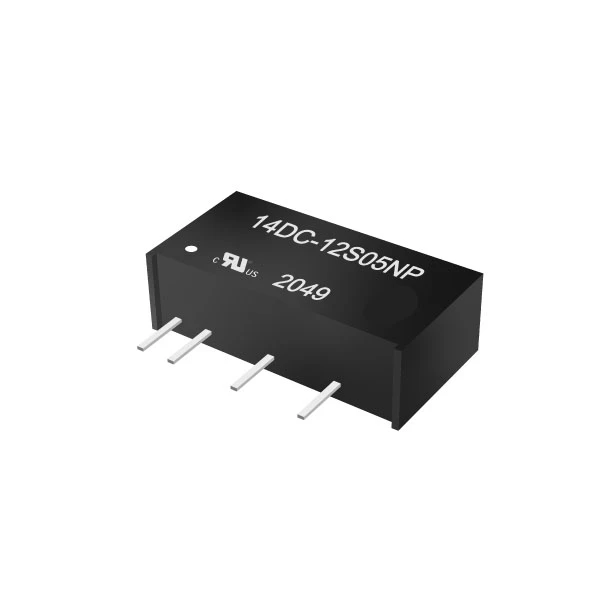

High Efficient 1W 1.5KVDC & 3KVDC Isolation
For detailed information on this product, please refer to the manufacturer's Full Specification below
High Efficient 1W 1.5KVDC & 3KVDC Isolation
| Model | Output Voltage | Output Current | Efficiency |
|---|---|---|---|
| 14DC-YYS03NP(H3) | 3.3 | 303 | 76 |
| 14DC-YYS05NP(H3) | 5 | 200 | 82 |
| 14DC-YYS09NP(H3) | 9 | 112 | 83 |
| 14DC-YYS12NP(H3) | 12 | 84 | 84 |
| 14DC-YYS15NP(H3) | 15 | 67 | 84 |
| 14DC-YYS24NP(H3) | 24 | 42 | 85 |
| 14DC-YYD03NP(H3) | ±3.3 | ±151 | 76 |
| 14DC-YYD05NP(H3) | ±5 | ±100 | 82 |
| 14DC-YYD09NP(H3) | ±9 | ±56 | 83 |
| 14DC-YYD12NP(H3) | ±12 | ±42 | 84 |
| 14DC-YYD15NP(H3) | ±15 | ±34 | 84 |
| 14DC-YYD24NP(H3) | ±24 | ±21 | 85 |
| 14DC-XXS03NP(H3) | 3.3 | 303 | 78 |
| 14DC-XXS05NP(H3) | 5 | 200 | 82 |
| 14DC-XXS09NP(H3) | 9 | 112 | 85 |
| 14DC-XXS12NP(H3) | 12 | 84 | 85 |
| 14DC-XXS15NP(H3) | 15 | 67 | 87 |
| 14DC-XXS24NP(H3) | 24 | 42 | 85 |
| 14DC-XXD03NP(H3) | ±3.3 | ±151 | 78 |
| 14DC-XXD05NP(H3) | ±5 | ±100 | 82 |
| 14DC-XXD09NP(H3) | ±9 | ±56 | 85 |
| 14DC-XXD12NP(H3) | ±12 | ±42 | 85 |
| 14DC-XXD15NP(H3) | ±15 | ±34 | 87 |
| 14DC-XXD24NP(H3) | ±24 | ±21 | 85 |
Features 3PIN SIP Package Pin-out compatible with LM78XX Linear Efficiency up to 95%, non-isolated, no need for heatsinks UL94V-0 package material Operating temperature from -40℃ to +85℃ No-load input current as low as 0.3mA Short circuit protection UL / cUL / IEC / EN 62368-1 approved, CB-Report
