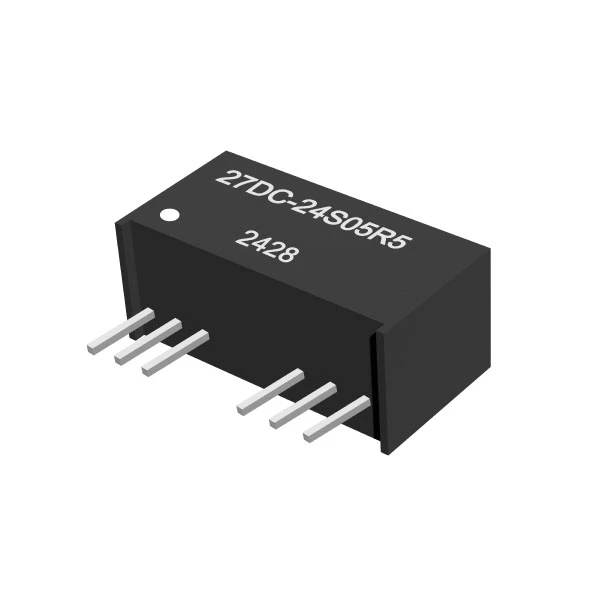

5W 1.6KV Isolation 4:1 Wide Input Voltage
For detailed information on this product, please refer to the manufacturer's Full Specification below
5W 1.6KV Isolation 4:1 Wide Input Voltage
| Model | Input Voltage | Output Voltage | Output Current | Efficiency |
|---|---|---|---|---|
| 27DC-24S05R5 | 9-36 | 5 | 1000 | 81 |
| 27DC-24S09R5 | 9-36 | 9 | 556 | 82 |
| 27DC-24S12R5 | 9-36 | 12 | 417 | 84 |
| 27DC-24S15R5 | 9-36 | 15 | 333 | 84 |
| 27DC-24S24R5 | 9-36 | 24 | 208 | 84 |
| 27DC-24D05R5 | 9-36 | ±5 | ±500 | 81 |
| 27DC-24D09R5 | 9-36 | ±9 | ±278 | 82 |
| 27DC-24D12R5 | 9-36 | ±12 | ±208 | 84 |
| 27DC-24D15R5 | 9-36 | ±15 | ±167 | 84 |
| 27DC-24D24R5 | 9-36 | ±24 | ±104 | 84 |
| 27DC-48S05R5 | 18-75 | 5 | 1000 | 82 |
| 27DC-48S09R5 | 18-75 | 9 | 556 | 82 |
| 27DC-48S12R5 1 | 8-75 | 12 | 417 | 85 |
| 27DC-48S15R5 | 18-75 | 15 | 333 | 85 |
| 27DC-48S24R5 | 18-75 | 24 | 208 | 85 |
| 27DC-48D05R5 | 18-75 | ±5 | ±500 | 80 |
| 27DC-48D09R5 | 18-75 | ±9 | ±278 | 82 |
| 27DC-48D12R5 | 18-75 | ±12 | ±208 | 85 |
| 27DC-48D15R5 | 18-75 | ±15 | ±167 | 85 |
Features 3PIN SIP Package Pin-out compatible with LM78XX Linear Efficiency up to 95%, non-isolated, no need for heatsinks UL94V-0 package material Operating temperature from -40℃ to +85℃ No-load input current as low as 0.3mA Short circuit protection UL / cUL / IEC / EN 62368-1 approved, CB-Report
