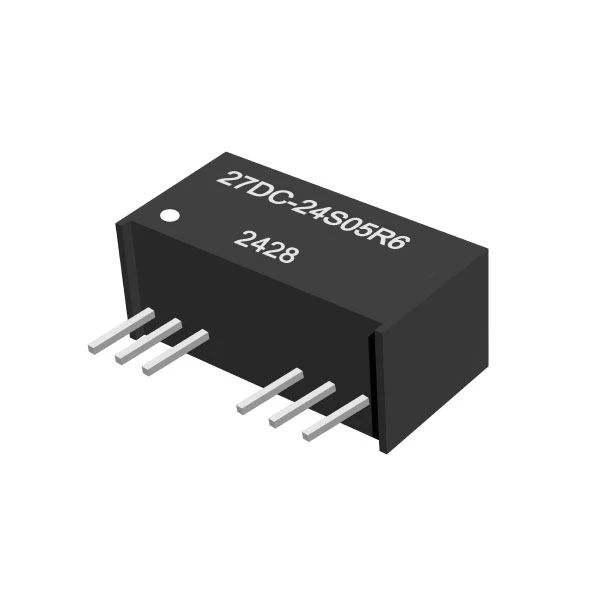

6W 1.6KV Isolation 4:1 Wide Input Voltage
For detailed information on this product, please refer to the manufacturer's Full Specification below
6W 1.6KV Isolation 4:1 Wide Input Voltage
| Model | Input Voltage | Output Voltage | Output Current | Efficiency |
|---|---|---|---|---|
| 27DC-24S03R6 | 9-36 | 3.3 | 1300 | 77 |
| 27DC-24S05R6 | 9-36 | 5 | 1200 | 82 |
| 27DC-24S09R6 | 9-36 | 9 | 667 | 83 |
| 27DC-24S12R6 | 9-36 | 12 | 500 | 85 |
| 27DC-24S15R6 | 9-36 | 15 | 400 | 85 |
| 27DC-24S24R6 | 9-36 | 24 | 250 | 85 |
| 27DC-24D05R6 | 9-36 | ±5 | ±600 | 81 |
| 27DC-24D09R6 | 9-36 | ±9 | ±333 | 83 |
| 27DC-24D12R6 | 9-36 | ±12 | ±250 | 85 |
| 27DC-24D15R6 | 9-36 | ±15 | ±200 | 86 |
| 27DC-24D24R6 | 9-36 | ±24 | ±125 | 84 |
| 27DC-48S03R6 | 18-75 | 3.3 | 1600 | 78 |
| 27DC-48S05R6 | 18-75 | 5 | 1200 | 82 |
| 27DC-48S09R6 | 18-75 | 9 | 667 | 84 |
| 27DC-48S12R6 | 18-75 | 12 | 500 | 86 |
| 27DC-48S15R6 | 18-75 | 15 | 400 | 87 |
| 27DC-48S24R6 | 18-75 | 24 | 250 | 87 |
| 27DC-48D05R6 1 | 8-75 | ±5 | ±600 | 82 |
| 27DC-48D09R6 | 18-75 | ±9 | ±333 | 84 |
| 27DC-48D12R6 | 18-75 | ±12 | ±250 | 86 |
| 27DC-48D15R6 | 18-75 | ±15 | ±200 | 86 |
Features 3PIN SIP Package Pin-out compatible with LM78XX Linear Efficiency up to 95%, non-isolated, no need for heatsinks UL94V-0 package material Operating temperature from -40℃ to +85℃ No-load input current as low as 0.3mA Short circuit protection UL / cUL / IEC / EN 62368-1 approved, CB-Report
