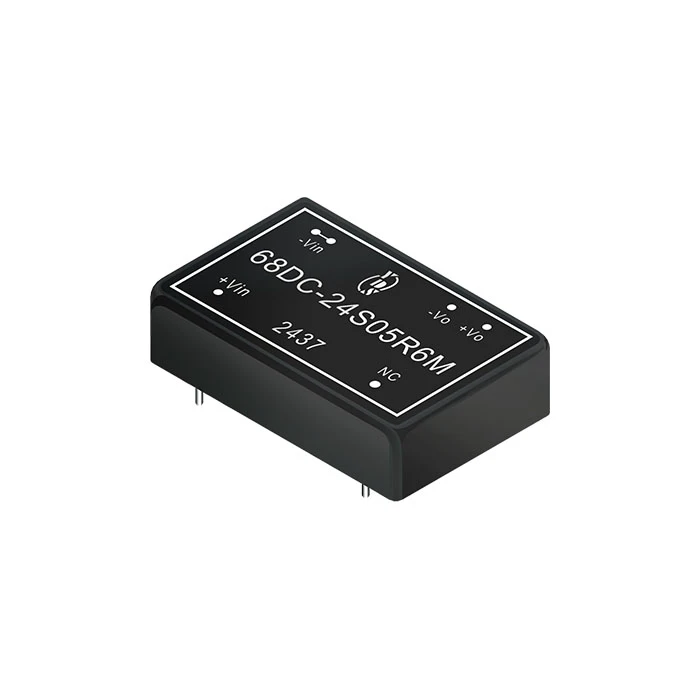

Medical application 3watt DC to DC power converter with 5.2KVac and 6KVdc isolation voltage specifications
For detailed information on this product, please refer to the manufacturer's Full Specification below
Medical application 3watt DC to DC power converter with 5.2KVac and 6KVdc isolation voltage specifications
| Model | Input Voltage | Output Voltage | Output Current | Efficiency |
|---|---|---|---|---|
| 68DC-24S03RXYM | 9-36 | 3.3 | 1500 | 76 |
| 68DC-24S05RXYM | 9-36 | 5 | 1200 | 81 |
| 68DC-24S09RXYM | 9-36 | 9 | 667 | 83 |
| 68DC-24S12RXYM | 9-36 | 12 | 500 | 84 |
| 68DC-24S15RXYM | 9-36 | 15 | 400 | 85 |
| 68DC-24S24RXYM | 9-36 | 24 | 250 | 84 |
| 68DC-24D05RXYM | 9-36 | ±5 | ±600 | 81 |
| 68DC-24D09RXYM | 9-36 | ±9 | ±333 | 83 |
| 68DC-24D12RXYM | 9-36 | ±12 | ±250 | 85 |
| 68DC-24D15RXYM | 9-36 | ±15 | ±200 | 85 |
| 68DC-48S03RXYM | 18-75 | 3.3 | 1500 | 78 |
| 68DC-48S05RXYM | 18-75 | 5 | 1200 | 82 |
| 68DC-48S09RXYM | 18-75 | 9 | 667 | 83 |
| 68DC-48S12RXYM | 18-75 | 12 | 500 | 84 |
| 68DC-48S15RXYM | 18-75 | 15 | 400 | 85 |
| 68DC-48S24RXYM | 18-75 | 24 | 250 | 84 |
| 68DC-48D05RXYM | 8-75 | ±5 | ±600 | 82 |
| 68DC-48D09RXYM | 18-75 | ±9 | ±333 | 83 |
| 68DC-48D12RXYM | 18-75 | ±12 | ±250 | 84 |
| 68DC-48D15RXYM | 18-75 | ±15 | ±200 | 85 |
Features 3PIN SIP Package Pin-out compatible with LM78XX Linear Efficiency up to 95%, non-isolated, no need for heatsinks UL94V-0 package material Operating temperature from -40℃ to +85℃ No-load input current as low as 0.3mA Short circuit protection UL / cUL / IEC / EN 62368-1 approved, CB-Report
