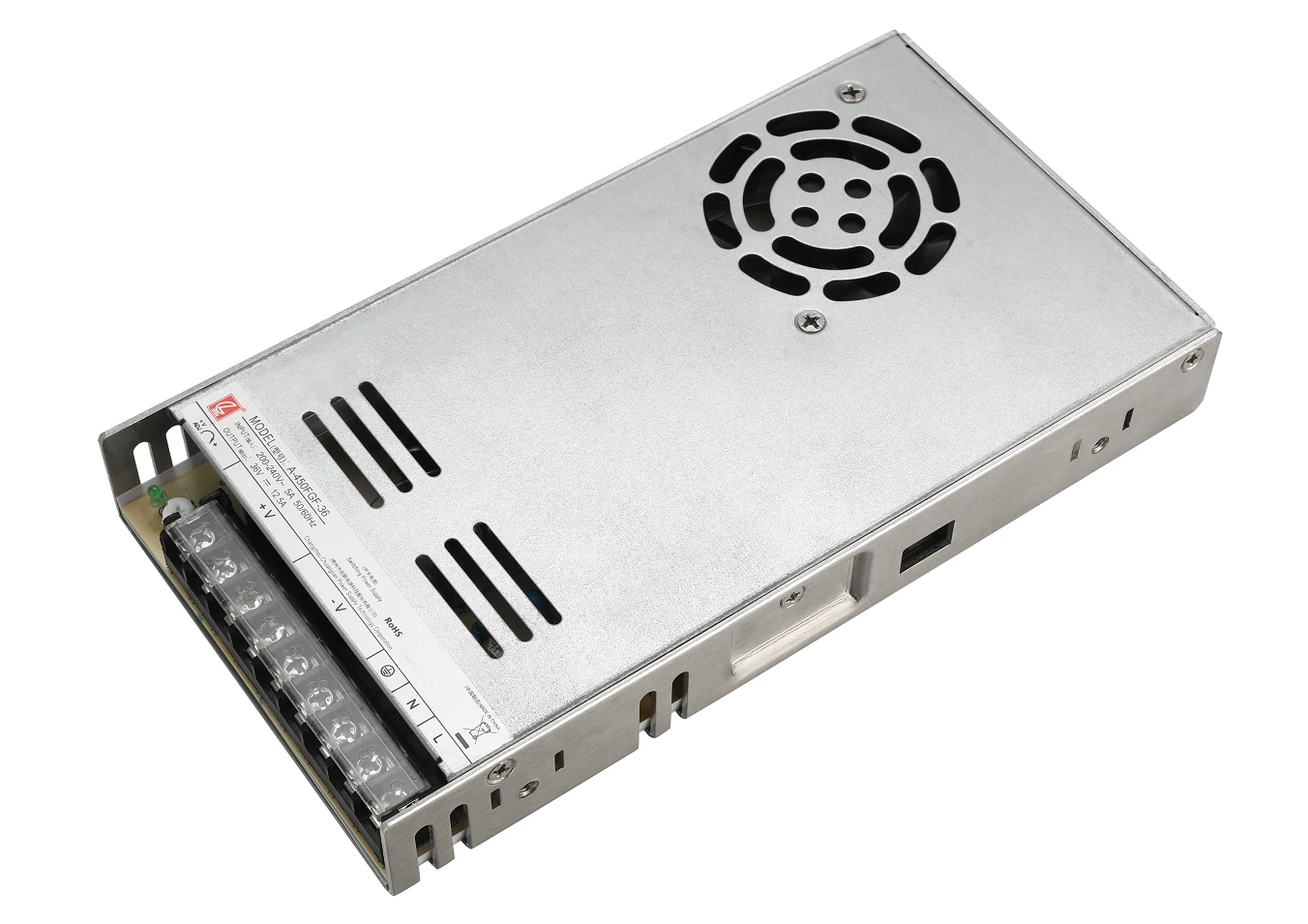

A-450FGF Series

The A-450FGF-X series is a 450 watts air-cooled metal enclosed industrial power supply. Adopting wide AC&DC input voltage, the entire series provides an output voltage line of 12V, 15V, 24V, 27V,36V and 48V for option. It can be adapted to different load application and meet various industrial application requirements. Besides, the EMC and safety regulations comply with the IEC/EN/UL62368 standards. High conversion efficiency, compact housing design, good heat dissipation, and all-round protection guarantee the high reliability and stability of this power supply.

Full Specifications

For detailed information on this product, please refer to the manufacturer's Full Specification below

Have some questions?

Request Product Info

A-450FGF Series

The A-450FGF-X series is a 450 watts air-cooled metal enclosed industrial power supply. Adopting wide AC&DC input voltage, the entire series provides an output voltage line of 12V, 15V, 24V, 27V,36V and 48V for option. It can be adapted to different load application and meet various industrial application requirements. Besides, the EMC and safety regulations comply with the IEC/EN/UL62368 standards. High conversion efficiency, compact housing design, good heat dissipation, and all-round protection guarantee the high reliability and stability of this power supply.

Features

  • AC input range selectable by switch
  • High efficiency, long life and high reliability
  • Output protections: SCP/OVP/OLP/OTP
  • Operating temperature: -25℃~+70℃
  • LED indicator for power on
  • 100% full load burn-in test
  • Low profile, 30mm
  • Forced air cooling by built-in DC fan
  • 3 years warranty

Model Output Voltage Output Current Output Power Efficiency Ripple and Noise Adjustable Output Voltage Range
A-450FGF-12 12 0-37.5 450 84% 150 10.8-13.2
A-450FGF-15* 15 0-30 450 84% 150 13.5-16.5
A-450FGF-24 24 0-18.8 451.2 86.5% 250 21.6-26.4
A-450FGF-27* 27 0-16.7 450.9 86.5% 250 24.3-29.7
A-450FGF-36 36 0-12.5 450 87% 250 32.4-39.6
A-450FGF-48 48 0-9.4 451.2 87% 250 43.2-52.8
