Category:

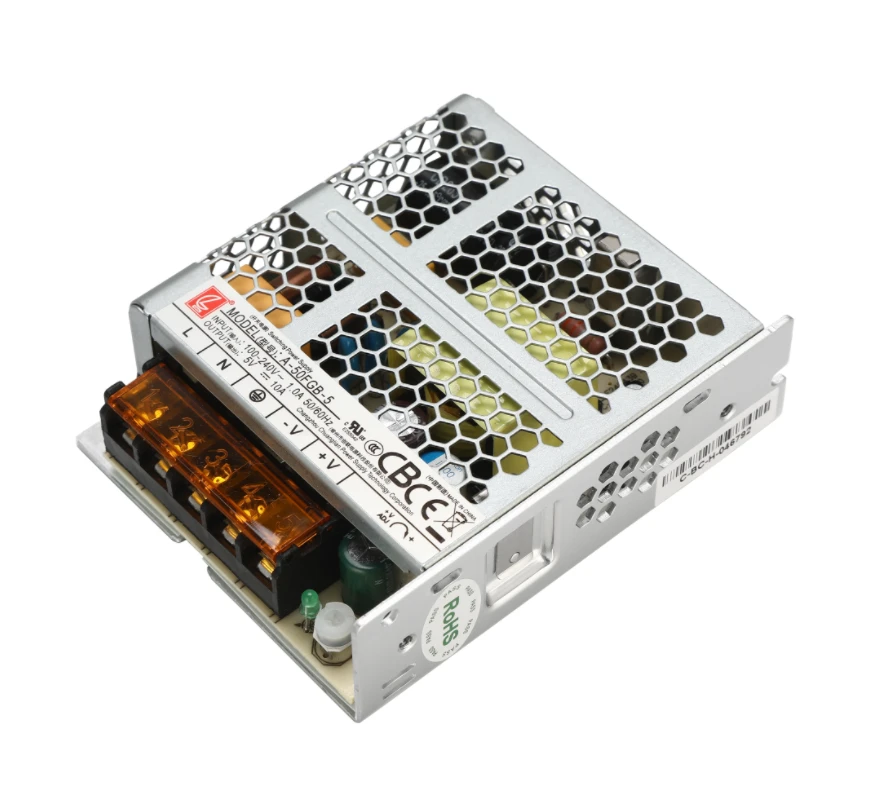

A-50FGB Series

A-50FGB-X series is a 50W single-output industrial power supply. With input voltage range of 90- 264VAC/120-370VDC and output voltages of 5V/12V/15V/24V/36V/48V, it can adapt to diverse load requirements and meet the needs of most industrial applications. Furthermore, the product meets international EMC and safety standards, including IEC/EN/UL62368 and GB4943. High conversion efficiency, a compact housing design, excellent heat dissipation, and comprehensive protection ensure the high reliability and stability.

A-50FGB Series

Full Specifications

For detailed information on this product, please refer to the manufacturer's Full Specification below

Safeties

Have some questions?

Request Product Info
Category:

A-50FGB Series

A-50FGB-X series is a 50W single-output industrial power supply. With input voltage range of 90- 264VAC/120-370VDC and output voltages of 5V/12V/15V/24V/36V/48V, it can adapt to diverse load requirements and meet the needs of most industrial applications. Furthermore, the product meets international EMC and safety standards, including IEC/EN/UL62368 and GB4943. High conversion efficiency, a compact housing design, excellent heat dissipation, and comprehensive protection ensure the high reliability and stability.

Features

  • Universal input: 90-264Vac / 120-370Vdc
  • High efficiency, long life and high reliability
  • Output protections: SCP/OVP/OLP
  • Operating temperature: -30℃~+70℃
  • LED indicator for power on
  • 100% full load burn-in test
  • Low profile, 30mm
  • Cooling by free air convection

Model Output Voltage Output Current Output Power Efficiency Ripple and Noise Adjustable Output Voltage Range
A-50FGB-5 5 50 50 83% 100 4.5-5.5
A-50FGB-12 12 0-4.2 50.4 85% 120 10.8-13.2
A-50FGB-15 15 0-3.4 51 85% 120 13.5-16.5
A-50FGB-24 24 0-2.1 50.4 85% 150 21.6-26.4
A-50FGB-36 36 0-1.4 50.4 86% 200 33-39
A-50FGB-48 48 0-1.1 52.8 86% 200 44-52
