FEATURES： ⚫ Universal Input 85~305VAC ⚫ High Efficiency Up to 81% ⚫ Protection: Short Circuit / Over Load ⚫ Ultra Small Size ⚫ 2 Years Warranty ⚫ RoHS Compliant

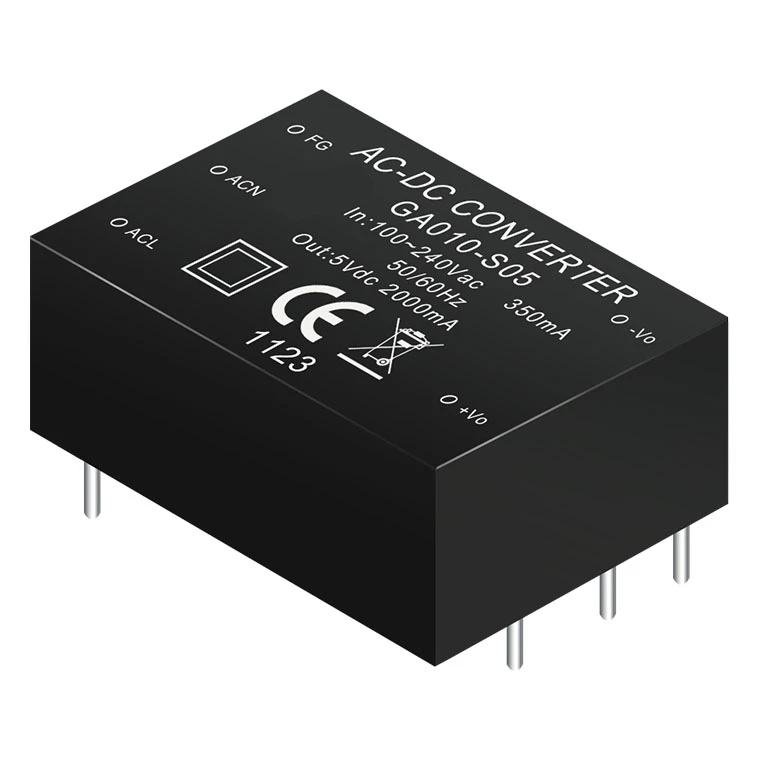

10W 3KVac Isolation Regulated Output AC-DC Converters
For detailed information on this product, please refer to the manufacturer's Full Specification below
10W 3KVac Isolation Regulated Output AC-DC Converters
| Model | Output Voltage | Output Current | Output Power | Efficiency | Ripple and Noise |
|---|---|---|---|---|---|
| GA010-S03 | 3.3 | 3000 | 10.0 | 74 | 100 |
| GA010-S05 | 5 | 2000 | 10.0 | 76 | 100 |
| GA010-S12 | 12 | 1000 | 12.0 | 80 | 150 |
| GA010-S15 | 15 | 800 | 12.0 | 80 | 150 |
| GA010-S24 | 24 | 500 | 12.0 | 80 | 240 |
| GA010-S48 | 48 | 250 | 10.0 | 82 | 240 |
| GA010-D05 | ±5 | ±1000 | 12.0 | 75 | 100 |
| GA010-D12 | ±12 | ±500 | 12.0 | 75 | 150 |
| GA010-D15 | ±15 | ±400 | 12.0 | 75 | 150 |
| GA010-D24 | ±24 | ±250 | 12.0 | 77 | 240 |
| GA010-D0512 | Vo1=+5, Vo2=+12 | Io1=1500, Io2=200 | 10.0 | 74 | 100(Vo1) 150(Vo2 |
| GA010-D0515 | Vo1=+5, Vo2=+15 | Io1=1400, Io2=200 | 10.0 | 74 | 100(Vo1) 150(Vo2 |
| GA010-D0524 | Vo1=+5, Vo2=+24 | Io1=1200, Io2=200 | 10.0 | 75 | 100(Vo1) 150(Vo2 |
FEATURES： ⚫ Universal Input 85~305VAC ⚫ High Efficiency Up to 81% ⚫ Protection: Short Circuit / Over Load ⚫ Ultra Small Size ⚫ 2 Years Warranty ⚫ RoHS Compliant
Features： Universal input: 80~264VAC Medical safety design refer to (2 × MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1 Suitable for BF application with appropriate system consideration No load power consumption < 0.1W Extremely low leakage current EMI class B for class II configuration Protection: short circuit / overload / over voltage / over temperature No […]
