FEATURES： ⚫ Universal Input 85~305VAC ⚫ High Efficiency Up to 81% ⚫ Protection: Short Circuit / Over Load ⚫ Ultra Small Size ⚫ 2 Years Warranty ⚫ RoHS Compliant

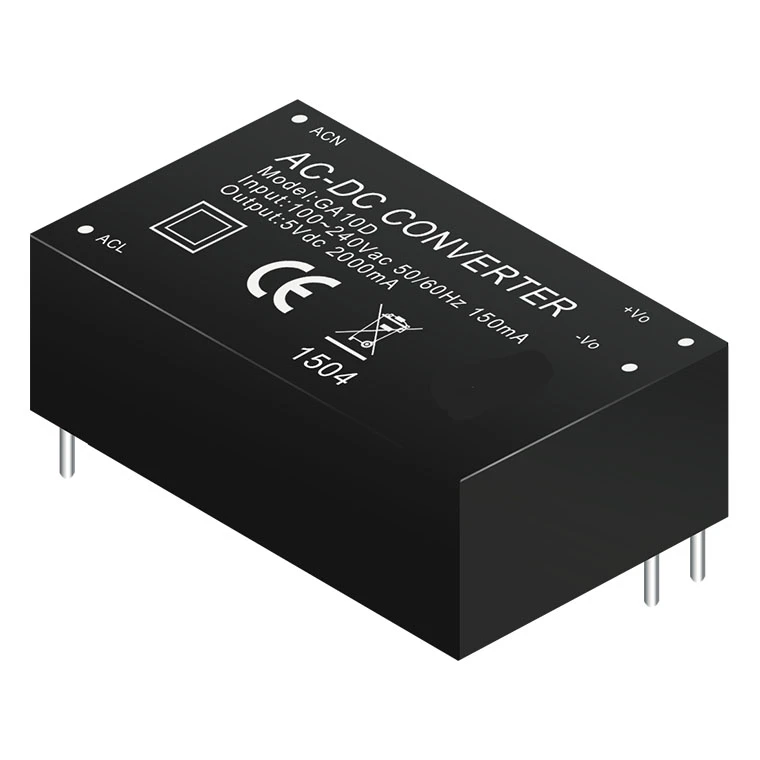

10~12W 4KVac Isolation Regulated Output AC-DC Converters
For detailed information on this product, please refer to the manufacturer's Full Specification below
10~12W 4KVac Isolation Regulated Output AC-DC Converters
| Model | Output Voltage | Output Current | Output Power | Efficiency | Ripple and Noise |
|---|---|---|---|---|---|
| GA10D-S03 | 3.3 | 2000 | 6.6 | 72 | 150 |
| GA10D-S05 | 5 | 2000 | 10.0 | 75 | 150 |
| GA10D-S10 | 10 | 1000 | 10.0 | 80 | 150 |
| GA10D-S12 | 12 | 1000 | 12.0 | 82 | 150 |
| GA10D-S15 | 15 | 800 | 12.0 | 82 | 150 |
| GA10D-S24 | 24 | 500 | 12.0 | 85 | 150 |
| GA10D-S36 | 36 | 330 | 12.0 | 85 | 240 |
| GA10D-S48 | 48 | 250 | 12.0 | 85 | 240 |
FEATURES： ⚫ Universal Input 85~305VAC ⚫ High Efficiency Up to 81% ⚫ Protection: Short Circuit / Over Load ⚫ Ultra Small Size ⚫ 2 Years Warranty ⚫ RoHS Compliant
Features： Universal input: 80~264VAC Medical safety design refer to (2 × MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1 Suitable for BF application with appropriate system consideration No load power consumption < 0.1W Extremely low leakage current EMI class B for class II configuration Protection: short circuit / overload / over voltage / over temperature No […]
