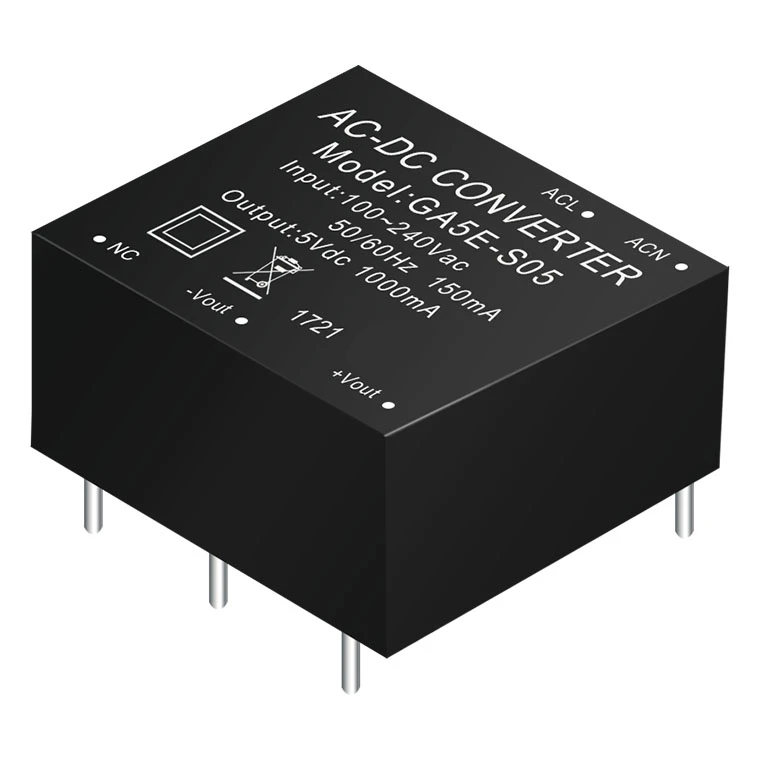

GA5E SERIES

55W 3KVac Isolation Regulated Output

GA5E SERIES

Full Specifications

For detailed information on this product, please refer to the manufacturer's Full Specification below

Safeties

Have some questions?

Request Product Info
Category:

GA5E SERIES

55W 3KVac Isolation Regulated Output

Features：

  • Ultra compact size: 1.0" x 1.0" x 0.64" package
  • Universal input: 90~264VAC
  • High efficiency up to 85%
  • Protections: short circuit / overload / over voltage
  • Fully encapsulated plastic case
  • UL/cUL/IEC/EN 60950-1, 62368-1 approved
  • EMC standard of EMI EN55032:2015 approved
  • EMC standard of EMS EN55024:2010 approved
  • 3 years warranty
  • RoHS compliant

Model Output Voltage Output Current Output Power Efficiency Ripple and Noise
GA5E-S03-X 3.3 1515 5.0 73 60
GA5E-S05-X 5 1000 5.0 80 60
GA5E-S09-X 9 555 5.0 81 90
GA5E-S12-X 12 416 5.0 81 120
GA5E-S15-X 15 333 5.0 82 150
GA5E-S24-X 24 208 5.0 82 240
GA5E-S48-X 48 104 5.0 84 480
