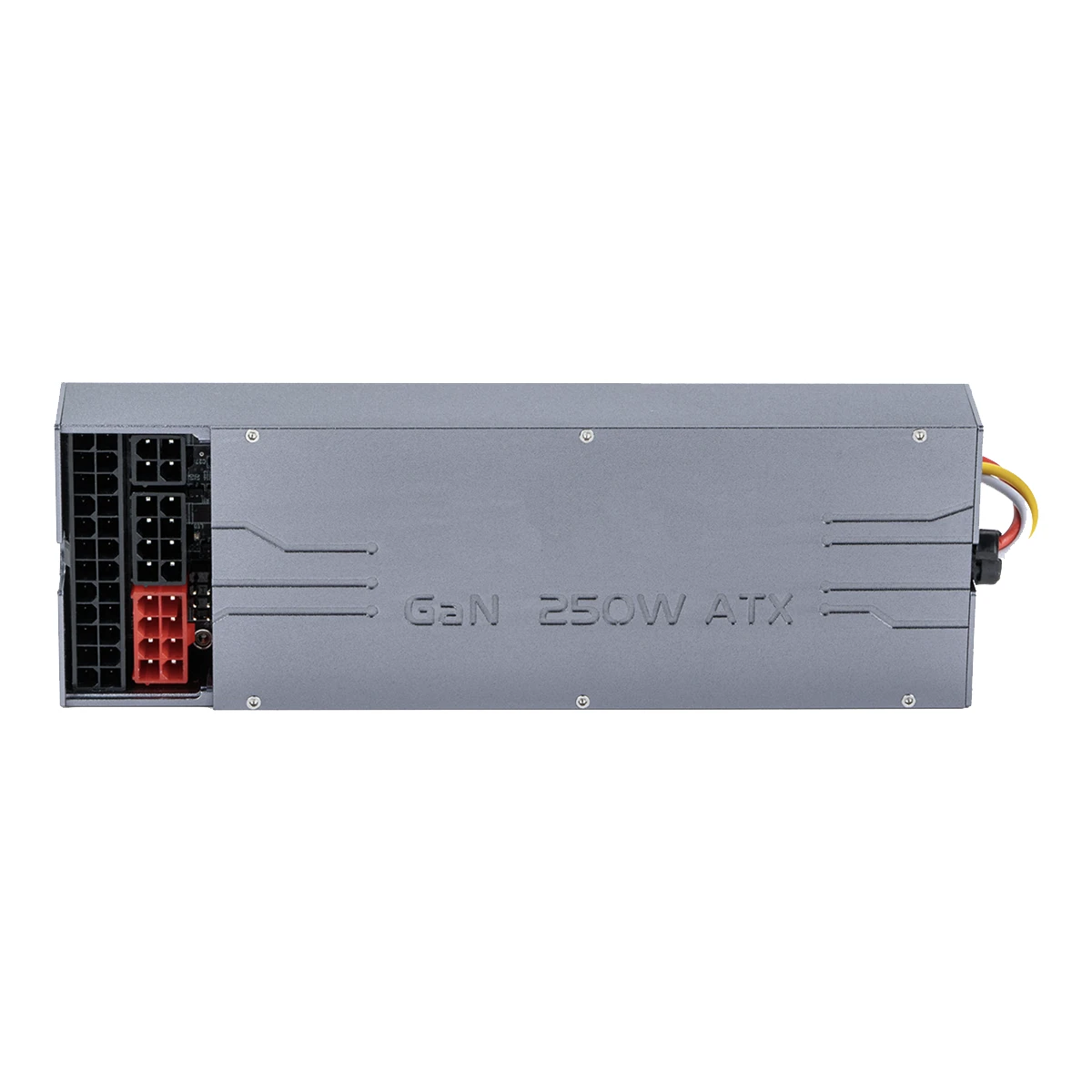

GAN 250W ATX

GAN 250W ATX

Full Specifications

For detailed information on this product, please refer to the manufacturer's Full Specification below

Safeties

Have some questions?

Request Product Info
Category:

GAN 250W ATX

Features

  • GaN all-in-one ATX power supply
  • Smallest ATX PSU in the world
  • Fully passive and fanless, zero dB operation
  • PFC + LLC structure, Level 5 energy efficiency
  • Two auto-grade GaN FETs on PFC stage and two on LLC stage
  • 1.18 W/cm³ super high power density
  • Support sync with a second unit
  • Aluminum shell casing works with
    HDPLEX fanless PC chassis for heat dissipation
  • Fanless and 100% silent
  • 4-layer 2oz copper PCB for high current and
    fast heat dissipation
  • Three-stage AC input filter eliminates grid noise
  • Unibody flat transformer eliminates vibration noise
  • High precision 1% resistors
  • Four ATX 1KV 8A TTR8MF full-wave rectifiers
  • 150µF Rubycon filter capacitor + 9000µF solid capacitor
  • Protections: UVP, OVP, SCP, OPP, OTP
  • Fully modular ATX output
  • Detachable C14 IEC connector – flexible
    support for custom AC input
  • Size: 170(D) × 55(W) × 25(H) mm
  • Weight: 360g / 13oz

Model Input Voltage Output Power Efficiency
250WGAN 90V-264V 250W 94%
