Kaga FEI America Logo
Category:

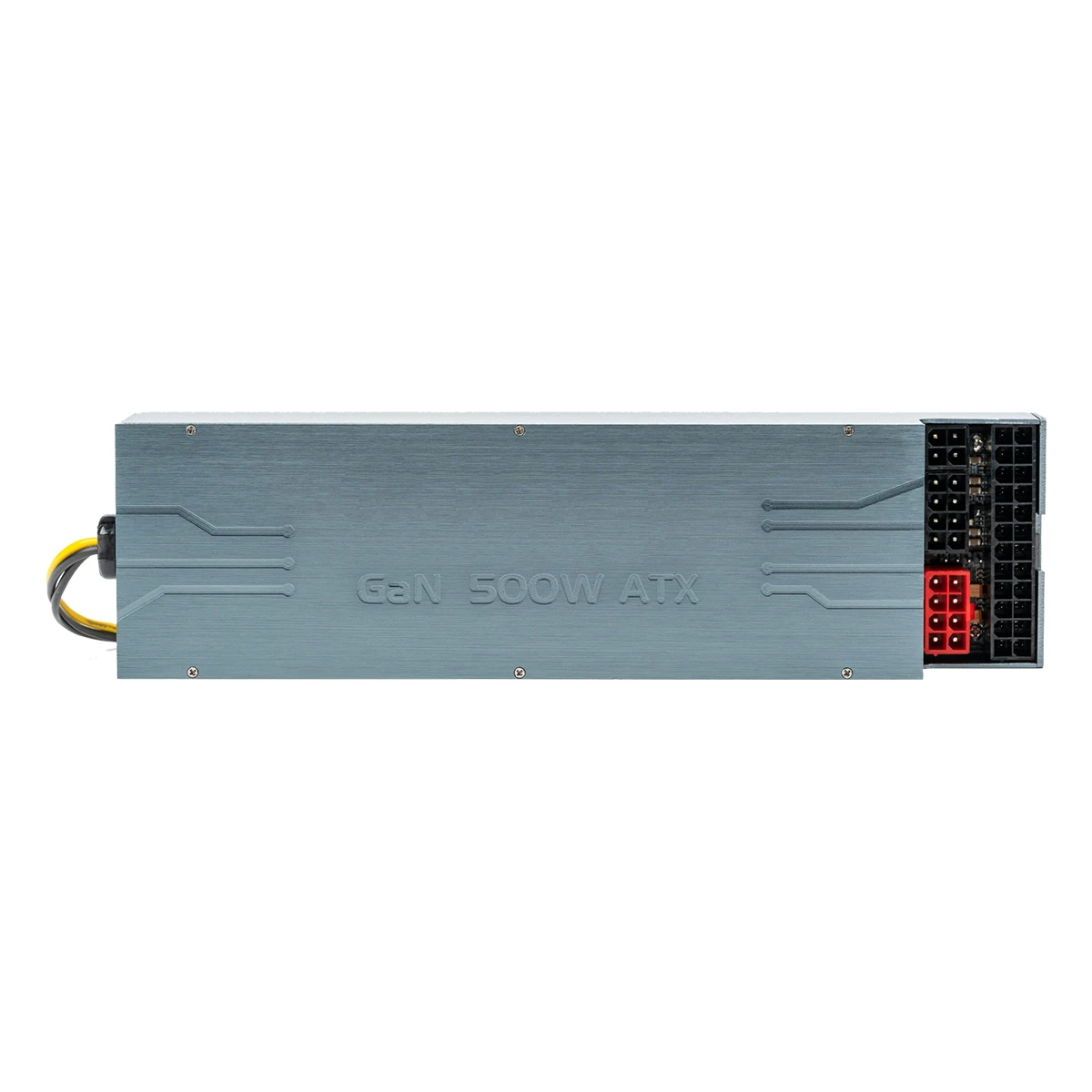

GAN 500W ATX

GAN 500W ATX

Full Specifications

For detailed information on this product, please refer to the manufacturer's Full Specification below

Safeties

Have some questions?

Request Product Info
Category:

GAN 500W ATX

Features

  • GaN all-in-one ATX power supply
  • Smallest 500W ATX PSU in the world
  • Temperature-controlled silent 12V low-speed fan
  • PFC + LLC structure, Level 5 energy efficiency
  • Two auto-grade GaN FETs on PFC stage and
    two on LLC stage
  • 1.13 W/cm³ super high power density
  • Support sync with a second unit
  • Aluminum shell casing works with
    HDPLEX fanless PC chassis for heat dissipation
  • 4-layer 2oz copper PCB for high current and fast heat dissipation
  • Three-stage AC input filter eliminates grid noise
  • Unibody flat transformer eliminates vibration noise
  • High precision 1% resistors
  • Four ShinDengen D25X rectifiers
  • 150µF Rubycon filter capacitor + 9000µF solid capacitor
  • Protections: UVP, OVP, SCP, OPP, OTP
  • OCP set at 120% of rated output
  • Fully modular ATX output
  • Detachable C14 IEC connector and
    AC connector (MOLEX 39014031 C505006, Pitch 4.2mm) – flexible to support custom AC inputs
  • Size: 200.2(D) × 55(W) × 40(H) mm
  • Weight: 640g / 23oz

Model Input Voltage Output Power Efficiency
500WGAN ATX 90V-264V 500W 94%
