Category: AC/DC Converter

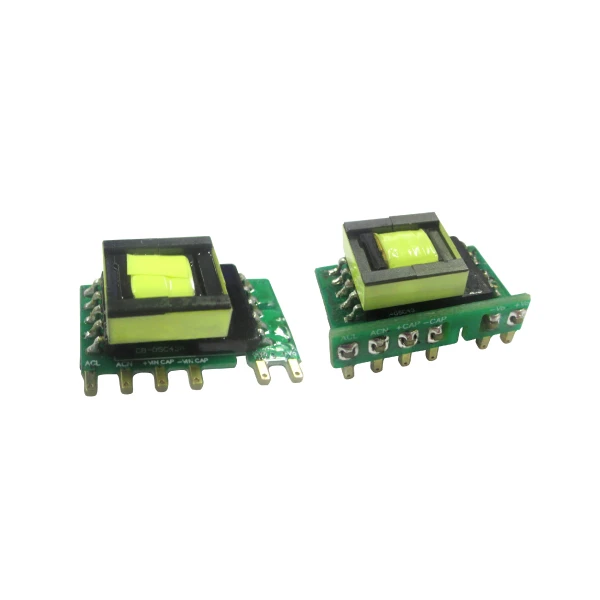

GS5H1 SERIES

Full Specifications

For detailed information on this product, please refer to the manufacturer's Full Specification below

Volgen Datasheet for GS5H1 SERIES

Safeties

Please contact Kaga Electronics USA, Inc. for documents

Have some questions?

Request Product Info

Category: AC/DC Converter

GS5H1 SERIES

FEATURES：

Ultra-wide 85 - 305VAC and 70 - 430VDC input voltage
High efficiency up to 81%
Protection: short circuit / over load
Accepts AC or DC input (dual-use of same terminal)
No load power consumption 0.1W
Output short circuit, over-current protection
2 years warranty
RoHS compliant

 							 								 																																	Model 																																													Output Voltage 											 																							Output Current 																																													Efficiency
 								 							            								            		 									                														GS5H1-S03(F)  																					                 							            								            		 									                														3.3  																					                 							            								            		 									                														1000  																					                 							            								            		 									                														69
 							            								            		 									                														GS5H1-S05(F)  																					                 							            								            		 									                														5  																					                 							            								            		 									                														1000  																					                 							            								            		 									                														76
 							            								            		 									                														GS5H1-S09(F)  																					                 							            								            		 									                														9  																					                 							            								            		 									                														560 																					                 							            								            		 									                														77
 							            								            		 									                														GS5H1-S12(F) 																					                 							            								            		 									                														12  																					                 							            								            		 									                														420  																					                 							            								            		 									                														79
 							            								            		 									                														GS5H1-S15(F)  																					                 							            								            		 									                														15  																					                 							            								            		 									                														340  																					                 							            								            		 									                														79
 							            								            		 									                														GS5H1-S24(F)  																					                 							            								            		 									                														24  																					                 							            								            		 									                														210  																					                 							            								            		 									                														81
