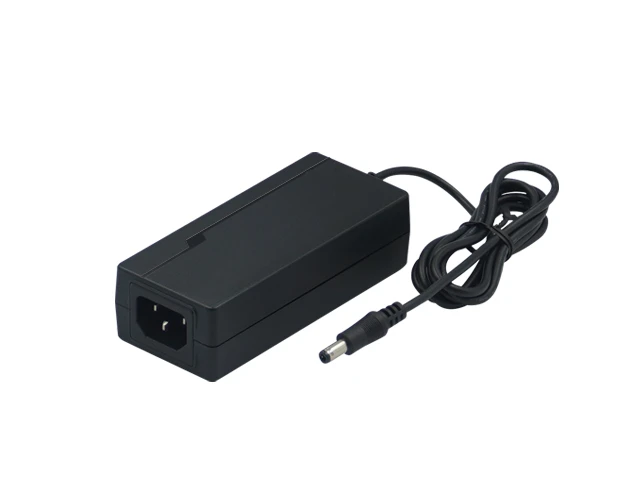

5W 3KVac Isolation Regulated Output
For detailed information on this product, please refer to the manufacturer's Full Specification below
| Model | Output Voltage | Output Current | Output Power | Efficiency | Load Regulation | Ripple and Noise |
|---|---|---|---|---|---|---|
| HPA65□-080 | 8 | 6.75 | 54 | 89.0 | ±5 | 100 |
| HPA65□-090 | 9 | 6.00 | 54 | 89.0 | ±5 | 100 |
| HPA65□-120 | 12 | 5.42 | 65 | 89.0 | ±3 | 100 |
| HPA65□-150 | 15 | 4.33 | 65 | 89.0 | ±3 | 100 |
| HPA65□-160 | 16 | 4.06 | 65 | 89.0 | ±3 | 120 |
| HPA65□-180 | 18 | 3.61 | 65 | 89.0 | ±3 | 120 |
| HPA65□-190 | 19 | 3.42 | 65 | 89.0 | ±3 | 120 |
| HPA65□-200 | 20 | 3.25 | 65 | 89.0 | ±3 | 120 |
| HPA65□-240 | 24 | 2.70 | 65 | 89.0 | ±2.5 | 130 |
| HPA65□-280 | 28 | 2.32 | 65 | 89.0 | ±2.5 | 180 |
| HPA65□-300 | 30 | 2.16 | 65 | 89.0 | ±2.5 | 200 |
| HPA65□-480 | 48 | 1.36 | 65 | 89.0 | ±2.5 | 200 |
Features Input voltage range: 70-264VAC Operating temperature: -40℃ to +70℃ Suitable for BF application Protection: OVP, OLP, OTP, SCP 2MOPP Meets DoE Level VII Extremely low leakage current <0.1mA Operating altitude: up to 5000M Designed to meet ISN & 60335 High surge immunity Built-in EMI filter LED indicator 3-year warranty IP22 rated
