5W 3KVac Isolation Regulated Output

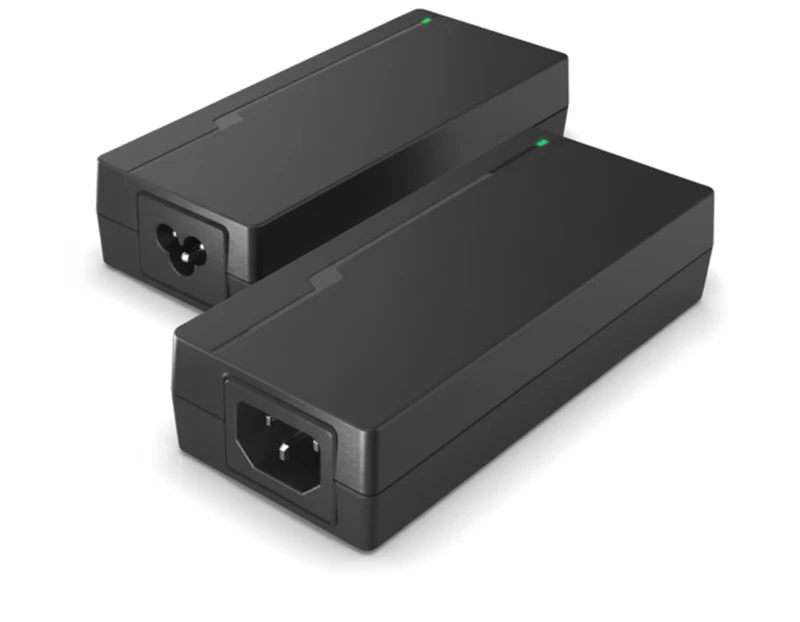

The series provides a voltage range from 12V to 48V, delivering up to 90 watts of power, suitable for various applications and devices.
For detailed information on this product, please refer to the manufacturer's Full Specification below
The series provides a voltage range from 12V to 48V, delivering up to 90 watts of power, suitable for various applications and devices.
| Model | Output Voltage | Output Current | Output Power | Efficiency | Ripple and Noise |
|---|---|---|---|---|---|
| HPA90-120 | 12.0 | 7.50 | 90 | 89.0% | 100 |
| HPA90-150 | 15.0 | 6.00 | 90 | 89.0% | 120 |
| HPA90-180 | 18.0 | 5.00 | 90 | 89.0% | 150 |
| HPA90-190 | 19.0 | 4.73 | 90 | 89.0% | 150 |
| HPA90-240 | 24.0 | 3.75 | 90 | 89.0% | 150 |
| HPA90-480 | 48.0 | 1.87 | 90 | 89.0% | 150 |
Features Input voltage range: 70-264VAC Operating temperature: -40℃ to +70℃ Suitable for BF application Protection: OVP, OLP, OTP, SCP 2MOPP Meets DoE Level VII Extremely low leakage current <0.1mA Operating altitude: up to 5000M Designed to meet ISN & 60335 High surge immunity Built-in EMI filter LED indicator 3-year warranty IP22 rated
