Category:

VDB10-W Series

The VDB10-W Series is a 10W isolated, DC/DC converter.

Features

  • Ultra-wide 4:1 input voltage range
  • High efficiency up to 88%
  • No-load power consumption as low as 0.12W
  • I/O isolation test voltage 1.5k VDC
  • Input under-voltage protection, output short-circuit, over-current, over-voltage protection
  • Operating ambient temperature range: -40℃ to +85℃
  • Meets CISPR32/EN55032 CLASS A, without extra components

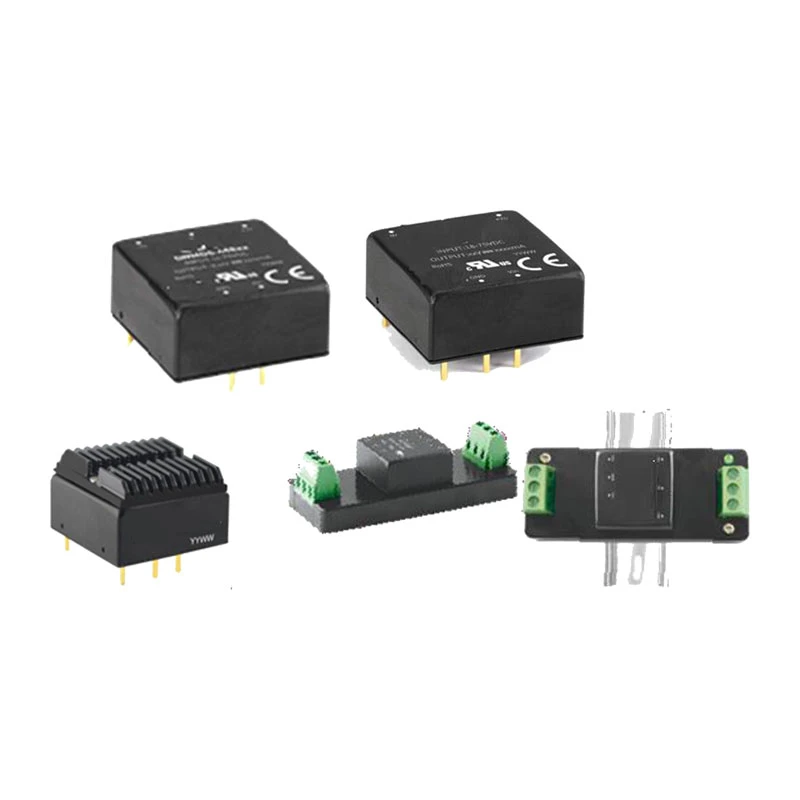

  • Input reverse polarity protection available with Chassis (E2S) or 35mm DIN-Rail mounting (D4S) version
  • Meets EN50155 railway standard
  • Industry standard pin-out

Model Input Voltage Output Voltage Output Current Efficiency
VDB10-24D05W 24 (9 - 36) VDC ±5VDC ±1000/0 81/83%
VDB10-24D09W 24 (9 - 36) VDC ±9VDC ±555/0 84/86%
VDB10-24D12W 24 (9 - 36) VDC ±12VDC ±416/0 85/87%
VDB10-24D15W 24 (9 - 36) VDC ±15VDC ±333/0 85/87%
VDB10-24D24W 24 (9 - 36) VDC ±24VDC ±208/0 85/87%
VDB10-24S03W 24 (9 - 36) VDC 3.3VDC 2400/0 75/77%
VDB10-24S05W 24 (9 - 36) VDC 5VDC 2000/0 80/82%
VDB10-24S09W 24 (9 - 36) VDC 9VDC 1111/0 83/85%
VDB10-24S12W 24 (9 - 36) VDC 12VDC 833/0 84/86%
VDB10-24S15W 24 (9 - 36) VDC 15VDC 667/0 84/86%
VDB10-24S24W 24 (9 - 36) VDC 24VDC 416/0 86/88%
VDB10-48D05W 48 (18 - 75) VDC ±5VDC ±1000/0 81/83%
VDB10-48D12W 48 (18 - 75) VDC ±12VDC ±416/0 85/87%
VDB10-48D15W 48 (18 - 75) VDC ±15VDC ±333/0 85/87%
VDB10-48D24W 48 (18 - 75) VDC ±24VDC ±208/0 85/87%
VDB10-48S03W 48 (18 - 75) VDC 3.3VDC 2400/0 77/79%
VDB10-48S05W 48 (18 - 75) VDC 5VDC 2000/0 81/83%
VDB10-48S12W 48 (18 - 75) VDC 12VDC 833/0 85/87%
VDB10-48S15W 48 (18 - 75) VDC 15VDC 667/0 85/87%
VDB10-48S24W 48 (18 - 75) VDC 24VDC 416/0 86/88%
