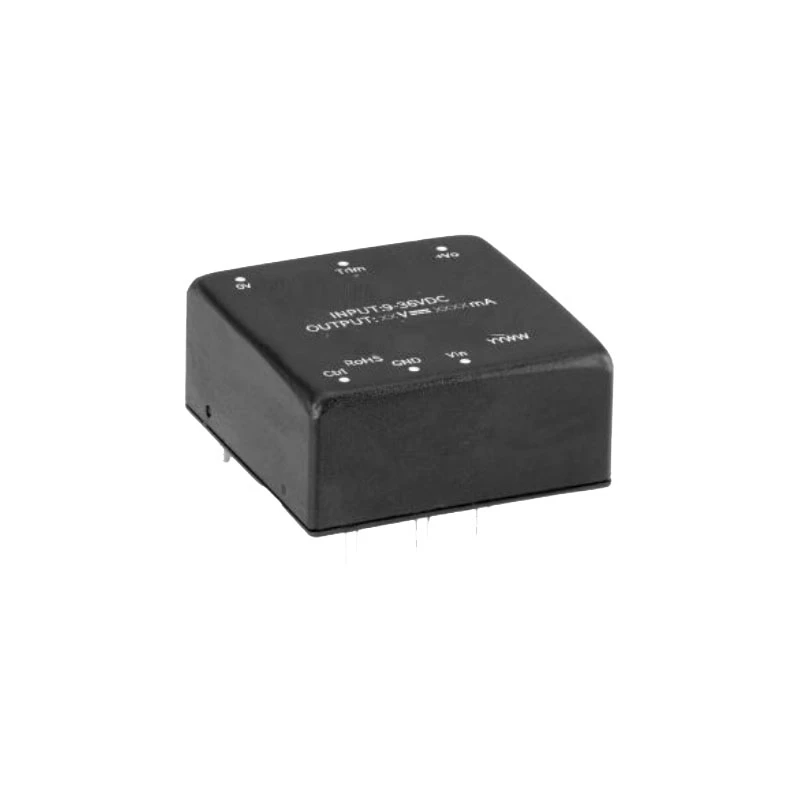

The VDB30-W Series is a 30W isolated, DC/DC converter.

VDB30-W Series

Full Specifications

For detailed information on this product, please refer to the manufacturer's Full Specification below

Safeties

Have some questions?

Request Product Info
Category:

VDB30-W Series

The VDB30-W Series is a 30W isolated, DC/DC converter.

Features

  • Ultra-Wide 4:1 input voltage range
  • High efficiency up to 90%
  • No-load power consumption as low as 0.096W
  • I/O isolation test voltage 1.5K VDC
  • Input under-voltage protection, output short circuit, over-current, over-voltage, over-temperature protection
  • Operating ambient temperature range: -40℃ to +105℃
  • Industry standard pin-out

Model Input Voltage Output Voltage Output Current Efficiency
VDB30-24S05W 24 (9 - 36) VDC 5VDC 6000/0 86/88%
VDB30-24S12W 24 (9 - 36) VDC 12VDC 2500/0 88/90%
VDB30-24S15W 24 (9 - 36) VDC 15VDC 2000/0 88/90%
VDB30-24S24W 24 (9 - 36) VDC 24VDC 1250/0 88/90%
VDB30-24S28W 24 (9 - 36) VDC 28VDC 1071/0 88/90%
VDB30-48S05W 48 (18 - 75) VDC 5VDC 6000/0 86/88%
VDB30-48S12W 48 (18 - 75) VDC 12VDC 2500/0 86/88%
VDB30-48S15W 48 (18 - 75) VDC 15VDC 2000/0 86/88%
VDB30-48S24W 48 (18 - 75) VDC 24VDC 1250/0 86/88%
VDB30-48D12W 48 (18 - 75) VDC ±12VDC ±1250/0 86/88%
VDB30-48D15W 48 (18 - 75) VDC ±15VDC ±1000/0 86/88%
VDB30-48D24W 48 (18 - 75) VDC ±24VDC ±625/0 86/88%
