Category:

VDB40-W Series

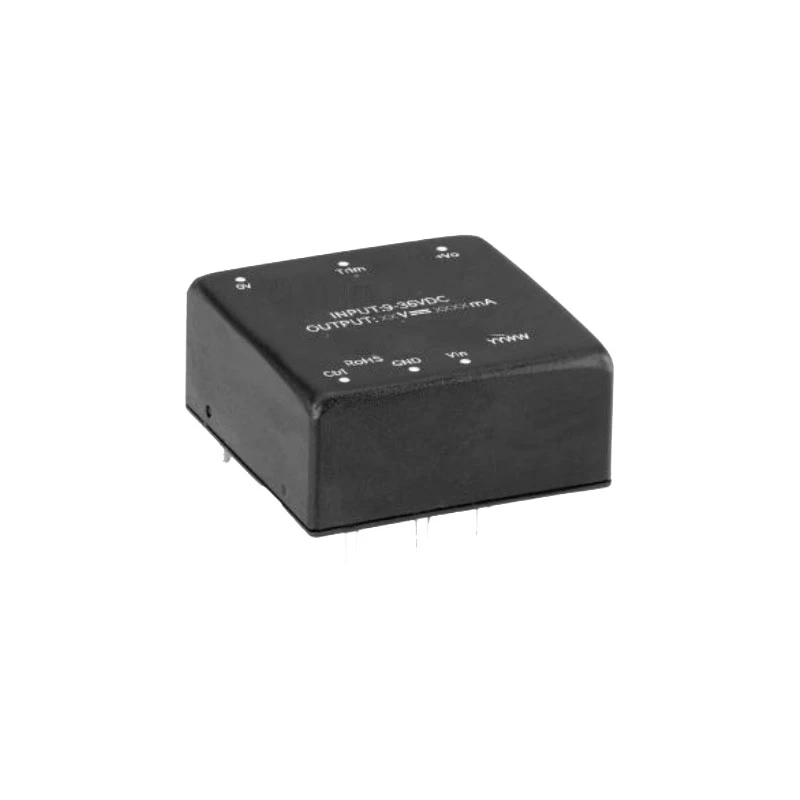

The VDB40-W Series is a 40W isolated, DC/DC converter.

VDB40-W-Series

Full Specifications

For detailed information on this product, please refer to the manufacturer's Full Specification below

Safeties

Have some questions?

Request Product Info
Category:

VDB40-W Series

The VDB40-W Series is a 40W isolated, DC/DC converter.

Features

  • Ultra-Wide 4:1 input voltage range
  • High efficiency up to 91.5%
  • No-load power consumption as low as 0.096W
  • I/O isolation test voltage 1.5k VDC
  • Input under-voltage protection, output short-circuit, over-current, over-voltage, over-temperature protection
  • Operating ambient temperature range: -40℃ to +105℃
  • Industry standard pin-out
  • Meets EN62368 standards

Model Input Voltage Output Voltage Output Current Efficiency
VDB40-24S03W 24 (9 - 36) VDC 3.3VDC 10000/0 87/89.5%
VDB40-24S05W 24 (9 - 36) VDC 5VDC 8000/0 88/90%
VDB40-24S12W 24 (9 - 36) VDC 12VDC 3333/0 89/91.2%
VDB40-24S15W 24 (9 - 36) VDC 15VDC 2667/0 89/91.5%
VDB40-24S24W 24 (9 - 36) VDC 24VDC 1667/0 88/90.1%
VDB40-24S28W 48 (18 - 75) VDC 28VDC 1429/0 88/90.1%
VDB40-48S03W 48 (18 - 75) VDC 3.3VDC 10000/0 87/89%
VDB40-48S05W 48 (18 - 75) VDC 5VDC 8000/0 88/90%
VDB40-48S12W 48 (18 - 75) VDC 12VDC 33333/0 89/91%
VDB40-48S15W 48 (18 - 75) VDC 15VDC 2667/0 89/91%
